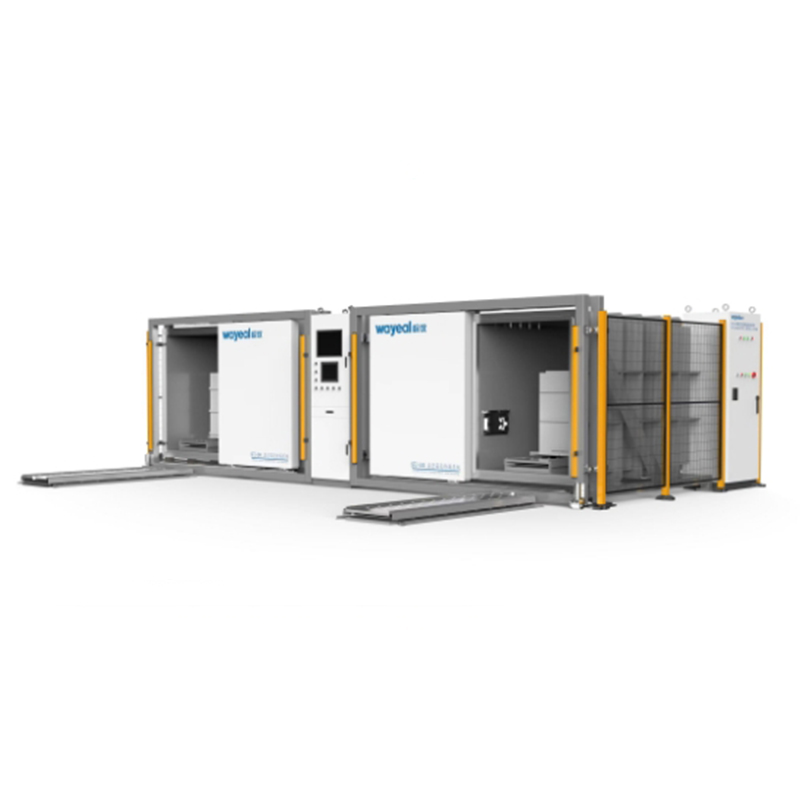

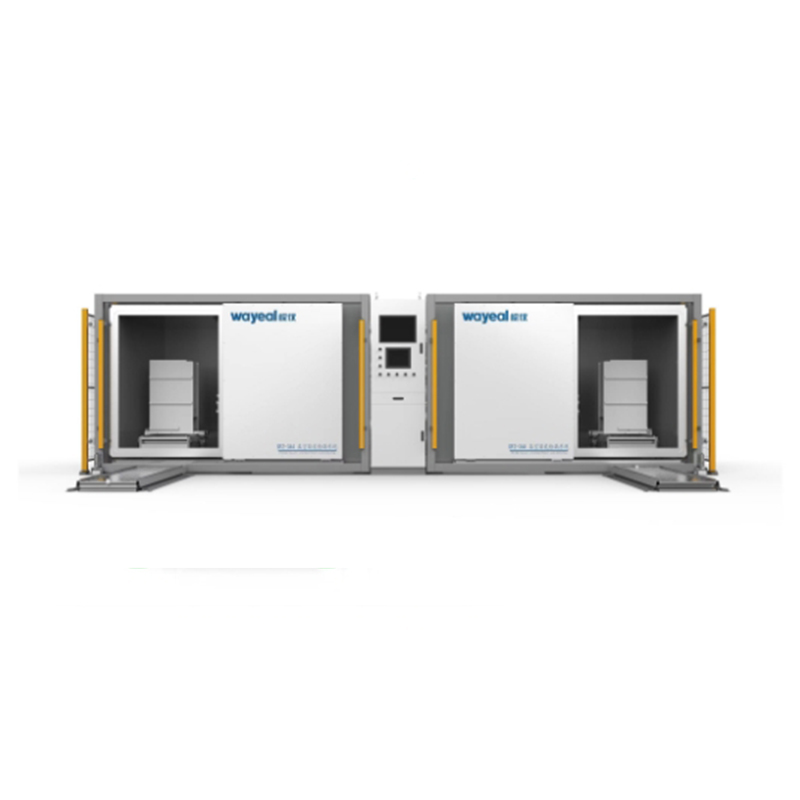

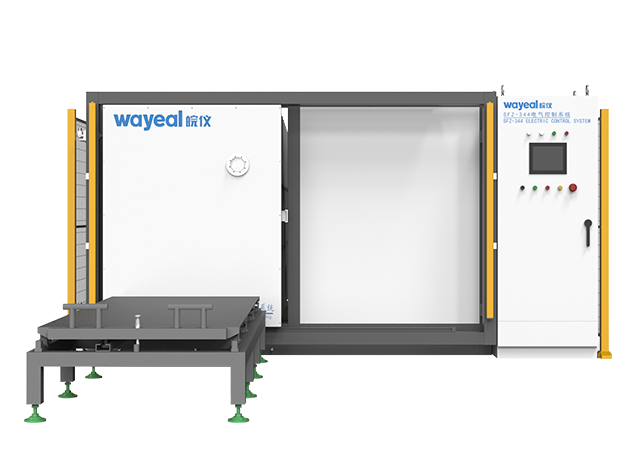

Vacuum Chamber Leak Detection System for Power Industry

Product overview
This equipment is suitable for leakage detection of high-voltage switchgears. It can be equipped with a material handling system to realize automatic in-and-out chamber, and reduce labor intensity. It can effectively control the internal-external pressure difference of the workpiece to ensure that the workpiece will not be damaged due to the pressure difference exceeding the limit. The helium recovery system can realize helium recycling, which can greatly reduce the use-cost. The remote monitoring function is optional.
Performance characteristics
1. The size of vacuum chamber can be customized according to the size of workpiece; the equipment size and layout can be customized according to the workshop;
2. It is equipped with a left-right sliding door and a platform outside the chamber, so that workpieces can get in and out of the chamber smoothly and conveniently;
3. There are several independent joints reserved in the chamber, so multiple workpieces can be detected at the same time;
4. The helium can be recycled, with a recovery rate as high as 96%, which can reduce the use-cost;
5. High-end configuration, standardized design and production, and stable and reliable performance;
6. The system has automatic helium cleaning function, which can quickly and efficiently clean the helium pollution caused by leaking workpieces;
7. The automatic in-and-out chamber function (optional) can be selected to connect the automatic line and realize full automatic detection;
8. The functions of vacuum dehumidification and hot nitrogen dehumidification (optional) can be selected to reduce the micro-water content in the workpiece;
9. The online micro-water detection function (optional) can detect the micro-water content of helium source in real time;
10. The system integrates industrial IoT technology, and the detection process can realize intelligent production such as real-time storage, monitoring and diagnosis;
11. Customized upper computer software development services can be provided according to clients' manufacturing and MES requirements.
Industry application

Suitable for leakage detection of SF6 gas-filled cabinets, pot terminals, GIS/GIL, column switches, power castings, fuse parts, fuse cartridges, bushings and so on.
